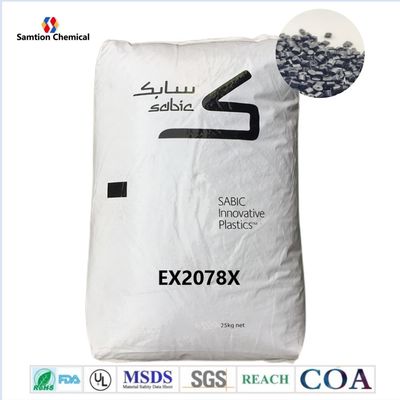

Sabic Lexan PC EX2078X Description
Lexan* EX2078X is a diffusive, branched polycarbonate grade which enables a fine surface texture when extruded in sheet, pipe and profiles. This grade is flame retardant per DIN VDE and contains release agent and UV absorber.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yield, 50 mm/min | 65 | MPa | ISO 527 |
| Tensile Stress, break, 50 mm/min | 65 | MPa | ISO 527 |
| Tensile Strain, yield, 50 mm/min | 7 | % | ISO 527 |
| Tensile Strain, break, 50 mm/min | 2450 | % | ISO 527 |
| Tensile Modulus, 1 mm/min | 2450 | MPa | ISO 527 |
| Flexural Stress, yield, 2 mm/min | 95 | MPa | ISO 178 |
| Flexural Modulus, 2 mm/min | 2250 | MPa | ISO 178 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, unnotched 80*10*3 +23°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, unnotched 80*10*3 -30°C | NB | kJ/m² | ISO 180/1U |
| Izod Impact, notched 80*10*3 +23°C | 7 | kJ/m² | ISO 180/1A |
| Izod Impact, notched 80*10*3 -30°C | 6 | kJ/m² | ISO 180/1A |
| Charpy 23°C, V-notch Edgew 80*10*3 sp=62mm | 7 | kJ/m² | ISO 179/1eA |
| Charpy -30°C, V-notch Edgew 80*10*3 sp=62mm | 8 | kJ/m² | ISO 179/1eA |
| Charpy 23°C, Unnotch Edgew 80*10*3 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| Charpy -30°C, Unnotch Edgew 80*10*3 sp=62mm | NB | kJ/m² | ISO 179/1eU |
| THERMAL | Value | Unit | Standard |
| CTE, -40°C to 40°C, flow | 7.E-05 | 1/°C | ISO 11359-2 |
| CTE, -40°C to 40°C, xflow | 7.E-05 | 1/°C | ISO 11359-2 |
| Vicat Softening Temp, Rate B/50 | 148 | °C | ISO 306 |
| Vicat Softening Temp, Rate B/120 | 140 | °C | ISO 306 |
| HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 141 | °C | ISO 75/Be |
| HDT/Af, 1.8 MPa Flatw 80*10*4 sp=64mm | 128 | °C | ISO 75/Af |
| PHYSICAL | Value | Unit | Standard |
| Density | 1.2 | g/cm³ | ISO 1183 |
| Water Absorption, (23°C/sat) | 0.35 | % | ISO 62 |
| Moisture Absorption (23°C / 50% RH) | 0.15 | % | ISO 62 |
| Melt Volume Rate, MVR at 300°C/1.2 kg | 3 | cm³/10 min | ISO 1133 |
| Melt Volume Rate, MVR at 300°C/2.16 kg | 6 | cm³/10 min | ISO 1133 |
| FLAME CHARACTERISTICS | Value | Unit | Standard |
| UL Recognized, 94V-0 Flame Class Rating (3) | 3 | mm | UL 94 |
| Glow Wire Flammability Index 960°C, passes at | 1.6 | mm | IEC 60695-2-12 |
| Source GMD, last updated:04/07/2008 | |||
|
For more information please see below |
|
|
SABIC lexan polycarbonate EX2078X.pdf |
|
Get The Latest Quotation 5000 kinds of products 1000 tons of spot inventory First-level distribution source in South China Reduce procurement costs, improve supply stability, Help you find the most suitable engineering plastic materials
|
|
Sabic Lexan PC Application
|
SABIC Lexan PC is a highly versatile engineering thermoplastic that is widely used in various industries for its outstanding properties and performance characteristics. Its applications range from automotive, electrical and electronic, construction, medical, to packaging. In the automotive industry, SABIC Lexan PC is used for headlamp lenses, instrument panels, and interior trim parts. In the electrical and electronic industry, it is used for connectors, switch housings, and LCD displays. In the construction industry, SABIC Lexan PC is used for skylights, roof domes, and glazing. In the medical industry, it is used for medical equipment housings, surgical instruments, and drug delivery devices because of its biocompatibility, radiation resistance, and sterilizability. Finally, in the packaging industry, SABIC Lexan PC is preferred for its lightweight, transparency, and impact resistance, making it suitable for food containers, bottles, and blister packs. |
|
