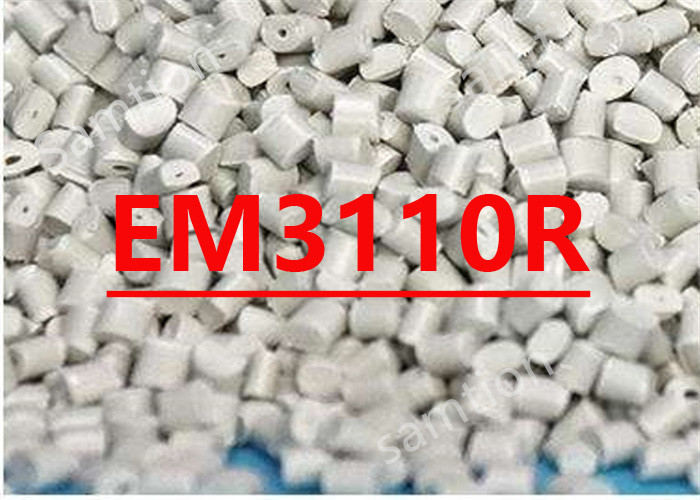

S-Plastics Lexan EM3110R resin is Automotive interiors. Optimizes flow/processability for cost effective thinner wall design uses. Internal mold release.
| TYPICAL PROPERTIES (1) | |||
| MECHANICAL | Value | Unit | Standard |
| Tensile Stress, yld, Type I, 50 mm/min | 55 | MPa | ASTM D 638 |
| Tensile Strain, brk, Type I, 50 mm/min | 90 | % | ASTM D 638 |
| Flexural Stress, yld, 1.3 mm/min, 50 mm span | 82 | MPa | ASTM D 790 |
| Flexural Modulus, 1.3 mm/min, 50 mm span | 2170 | MPa | ASTM D 790 |
| IMPACT | Value | Unit | Standard |
| Izod Impact, notched, 23°C | 640 | J/m | ASTM D 256 |
| Izod Impact, notched, -20°C | 587 | J/m | ASTM D 256 |
| Izod Impact, notched, -30°C | 213 | J/m | ASTM D 256 |
| Izod Impact, notched, 23°C, 6.4mm | 213 | J/m | ASTM D 256 |
| Instrumented Impact Energy @ peak, 23°C | 56 | J | ASTM D 3763 |
| THERMAL | Value | Unit | Standard |
| HDT, 1.82 MPa, 3.2mm, unannealed | 118 | °C | ASTM D 648 |
| HDT, 0.45 MPa, 6.4 mm, unannealed | 126 | °C | ASTM D 648 |
| HDT, 1.82 MPa, 6.4 mm, unannealed | 123 | °C | ASTM D 648 |
| CTE, -40°C to 95°C, flow | 6.48E-05 | 1/°C | ASTM E 831 |
| PHYSICAL | Value | Unit | Standard |
| Specific Gravity | 1.19 | - | ASTM D 792 |
| Water Absorption, 24 hours | 0.16 | % | ASTM D 570 |
| Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | S-Plastics Method |
| Melt Flow Rate, 300°C/1.2 kgf | 20 | g/10 min | ASTM D 1238 |
| Source GMD, last updated:01/04/2000 | |||
| Parameter | ||
| Injection Molding | Value | Unit |
| Drying Temperature | 120 | °C |
| Drying Time | 3 - 4 | hrs |
| Drying Time (Cumulative) | 10 | hrs |
| Maximum Moisture Content | 0.02 | % |
| Melt Temperature | 275 - 300 | °C |
| Nozzle Temperature | 270 - 295 | °C |
| Front - Zone 3 Temperature | 275 - 300 | °C |
| Middle - Zone 2 Temperature | 265 - 290 | °C |
| Rear - Zone 1 Temperature | 255 - 275 | °C |
| Mold Temperature | 70 - 95 | °C |
| Back Pressure | 0.3 - 0.7 | MPa |
| Screw Speed | 40 - 70 | rpm |
| Shot to Cylinder Size | 40 - 60 | % |
| Vent Depth | 0.025 - 0.076 | mm |
| Source GMD, last updated:01/04/2000 |
|
For more information please download the datasheet |
|
 |
S-Plastics Lexan EM3110R.pdf |
|
