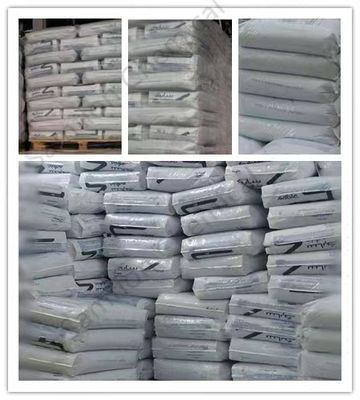

Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

S-Plastics Lexan  ML1624 resin is Highly brominated flame-retardant PC. Available in two colors only. Prior product approval required.


Property

MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 50 mm/min 68 MPa ASTM D 638
Tensile Stress, brk, Type I, 50 mm/min 65 MPa ASTM D 638
Tensile Strain, yld, Type I, 50 mm/min 30 % ASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span 110 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 2410 MPa ASTM D 790
IMPACT Value Unit Standard
Izod Impact, notched, 23°C 53 J/m ASTM D 256
Instrumented Impact Energy @ peak, 23°C 54 J ASTM D 3763
THERMAL Value Unit Standard
HDT, 1.82 MPa, 6.4 mm, unannealed 154 °C ASTM D 648
PHYSICAL Value Unit Standard
Specific Gravity 1.45 - ASTM D 792
Source GMD, last updated:01/04/2000

Processing



Injection Molding Value Unit
Drying Temperature 120 °C
Drying Time 3 - 4 hrs
Drying Time (Cumulative) 48 hrs
Maximum Moisture Content 0.02 %
Melt Temperature 310 - 330 °C
Nozzle Temperature 305 - 325 °C
Front - Zone 3 Temperature 310 - 330 °C
Middle - Zone 2 Temperature 300 - 320 °C
Rear - Zone 1 Temperature 290 - 310 °C
Mold Temperature 80 - 115 °C
Back Pressure 0.3 - 0.7 MPa
Screw Speed 40 - 70 rpm
Shot to Cylinder Size 40 - 60 %
Vent Depth 0.025 - 0.076 mm
Source GMD, last updated:01/04/2000
THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES.
PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION
(1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours
storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded
samples. All samples tested under ISO test standards are prepared according to ISO 294.
(2) Only typical data for selection purposes. Not to be used for part or tool design.
(3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions.
(4) Internal measurements according to UL standards.
