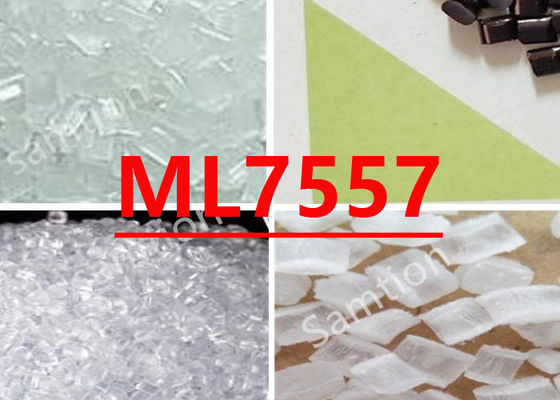

Sabic Lexan ML7557 General Purpose Grade. Good Clarity, Heat Resistance, Property Retention And Dimensional Stability.

100KG
MOQ
*USD
Price
Sabic Lexan ML7557 General Purpose Grade. Good Clarity, Heat Resistance, Property Retention And Dimensional Stability.
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Flow Rate, 300°C/1.2 Kgf: 26
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: ML7557
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

Sabic Lexan  ML7557 resin is General purpose grade. Good clarity, heat resistance, property retention and dimensional stability.


Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 50 mm/min 62 MPa ASTM D 638
Tensile Stress, brk, Type I, 50 mm/min 65 MPa ASTM D 638
Tensile Strain, brk, Type I, 50 mm/min 120 % ASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span 93 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 2300 MPa ASTM D 790
Tensile Stress, yield, 50 mm/min 63 MPa ISO 527
Tensile Stress, break, 50 mm/min 50 MPa ISO 527
Tensile Strain, yield, 50 mm/min 6 % ISO 527
Tensile Strain, break, 50 mm/min 70 % ISO 527
Tensile Modulus, 1 mm/min 2350 MPa ISO 527
Flexural Stress, yield, 2 mm/min 90 MPa ISO 178
Flexural Modulus, 2 mm/min 2300 MPa ISO 178
Hardness, H358/30 95 MPa ISO 2039-1
IMPACT Value Unit Standard
Izod Impact, notched, 23°C 640 J/m ASTM D 256
Izod Impact, notched, -40°C 117 J/m ASTM D 256
Tensile Impact, Type "S" 378 kJ/m² ASTM D 1822
Instrumented Impact Energy @ peak, 23°C 54 J ASTM D 3763
Izod Impact, unnotched 80*10*4 +23°C NB kJ/m² ISO 180/1U
Izod Impact, unnotched 80*10*4 -30°C NB kJ/m² ISO 180/1U
Izod Impact, notched 80*10*4 +23°C 12 kJ/m² ISO 180/1A
Izod Impact, notched 80*10*4 -30°C 10 kJ/m² ISO 180/1A
Charpy 23°C, V-notch Edgew 80*10*4 sp=62mm 12 kJ/m² ISO 179/1eA
Charpy -30°C, V-notch Edgew 80*10*4 sp=62mm 10 kJ/m² ISO 179/1eA
THERMAL Value Unit Standard
Vicat Softening Temp, Rate B/50 67 °C ASTM D 1525
HDT, 1.82 MPa, 3.2mm, unannealed 126 °C ASTM D 648
HDT, 1.82 MPa, 6.4 mm, unannealed 58 °C ASTM D 648
Thermal Conductivity 0.2 W/m-°C ISO 8302
CTE, 23°C to 80°C, flow 7.E-05 1/°C ISO 11359-2
Ball Pressure Test, 125°C +/- 2°C PASSES - IEC 60695-10-2
Vicat Softening Temp, Rate B/50 139 °C ISO 306
Vicat Softening Temp, Rate B/120 140 °C ISO 306
HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm 133 °C ISO 75/Be
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm 121 °C ISO 75/Ae
Relative Temp Index, Elec 130 °C UL 746B
Relative Temp Index, Mech w/impact 130 °C UL 746B
Relative Temp Index, Mech w/o impact 130 °C UL 746B
PHYSICAL Value Unit Standard
Specific Gravity 1.2 - ASTM D 792
Water Absorption, 24 hours 0.1 % ASTM D 570
Water Absorption, equilibrium, 23C 0.35 % ASTM D 570
Water Absorption, (23°C/sat) 0.35 % ASTM D 570
Water Absorption, equilibrium, 100°C 0.58 % ASTM D 570
Mold Shrinkage, flow, 3.2 mm 0.5 - 0.7 % SABIC Method
Melt Flow Rate, 300°C/1.2 kgf 25 g/10 min ASTM D 1238
Density 1.2 g/cm³ ISO 1183
Melt Volume Rate, MVR at 300°C/1.2 kg 26 cm³/10 min ISO 1133
OPTICAL Value Unit Standard
Light Transmission 88 % ASTM D 1003
Haze 1 % ASTM D 1003
ELECTRICAL Value Unit Standard
Hot Wire Ignition {PLC) 2 PLC Code UL 746A
High Voltage Arc Track Rate {PLC} 2 PLC Code UL 746A
High Ampere Arc Ign, surface {PLC} 1 PLC Code UL 746A
Comparative Tracking Index (UL) {PLC} 2 PLC Code UL 746A
Volume Resistivity >1.E+15 Ohm-cm IEC 60093
Surface Resistivity, ROA >1.E+15 Ohm IEC 60093
Dielectric Strength, in oil, 3.2 mm 17 kV/mm IEC 60243-1
Relative Permittivity, 50/60 Hz 2.7 - IEC 60250
Relative Permittivity, 1 MHz 2.7 - IEC 60250
Dissipation Factor, 50/60 Hz 0.001 - IEC 60250
Dissipation Factor, 1 MHz 0.01 - IEC 60250
FLAME CHARACTERISTICS Value Unit Standard
UL Recognized, 94V-2 Flame Class Rating (3) 1.09 mm UL 94
CSA (See File for complete listing) LS88480 File No. CSA LISTED
Oxygen Index (LOI) 25 % ISO 4589
Source GMD, last updated:07/31/2001

Processing

THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES.
PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION
(1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours
storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded
samples. All samples tested under ISO test standards are prepared according to ISO 294.
(2) Only typical data for selection purposes. Not to be used for part or tool design.
(3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions.
(4) Internal measurements according to UL standards.
