Sabic Lexan fxe941a medium Viscosity, Flame Retardant Pc. Exceptional Surface. Illuminate Special Effects

100KG
MOQ
*USD
Price
Sabic Lexan fxe941a medium Viscosity, Flame Retardant Pc. Exceptional Surface. Illuminate Special Effects
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Flow Rate, 300°C/1.2 Kgf: 10
UL Recognized, 94V-2 Flame Class Rating (3): 1.47
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: FXE941A
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

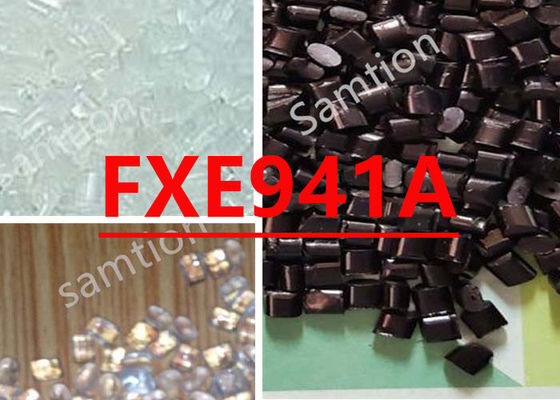

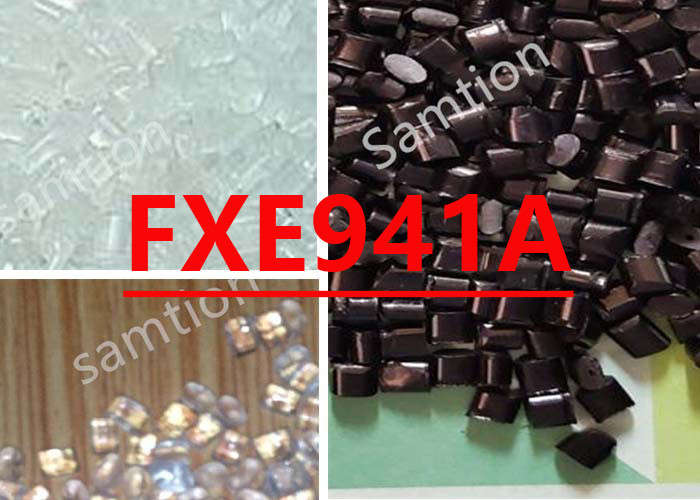

Sabic Lexan  FXE941A resin is Medium viscosity, flame retardant PC. Exceptional surface. ILLUMINATE special effects (flourescent/edge glow colors).


Property

MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 50 mm/min 62 MPa ASTM D 638
Tensile Stress, brk, Type I, 50 mm/min 55 MPa ASTM D 638
Tensile Strain, yld, Type I, 50 mm/min 7 % ASTM D 638
Tensile Strain, brk, Type I, 50 mm/min 90 % ASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span 91 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 2240 MPa ASTM D 790
Hardness, Rockwell M 70 - ASTM D 785
Hardness, Rockwell R 118 - ASTM D 785
Taber Abrasion, CS-17, 1 kg 10 mg/1000cy ASTM D 1044
IMPACT Value Unit Standard
Izod Impact, unnotched, 23°C 3204 J/m ASTM D 4812
Izod Impact, notched, 23°C 640 J/m ASTM D 256
Tensile Impact, Type "S" 525 kJ/m² ASTM D 1822
Falling Dart Impact (D 3029), 23°C 169 J ASTM D 3029
THERMAL Value Unit Standard
Vicat Softening Temp, Rate B/50 151 °C ASTM D 1525
HDT, 0.45 MPa, 6.4 mm, unannealed 137 °C ASTM D 648
HDT, 1.82 MPa, 6.4 mm, unannealed 132 °C ASTM D 648
CTE, -40°C to 95°C, flow 6.84E-05 1/°C ASTM E 831
Thermal Conductivity 0.19 W/m-°C ASTM C 177
Relative Temp Index, Elec 130 °C UL 746B
Relative Temp Index, Mech w/impact 120 °C UL 746B
Relative Temp Index, Mech w/o impact 130 °C UL 746B
PHYSICAL Value Unit Standard
Specific Gravity 1.21 - ASTM D 792
Specific Volume 0.83 cm³/g ASTM D 792
Density 1.217 g/cm³ ASTM D 792
Water Absorption, 24 hours 0.15 % ASTM D 570
Water Absorption, equilibrium, 23C 0.35 % ASTM D 570
Water Absorption, equilibrium, 100°C 0.58 % ASTM D 570
Mold Shrinkage, flow, 3.2 mm 0.5 - 0.7 % SABIC Method
Melt Flow Rate, 300°C/1.2 kgf 10 g/10 min ASTM D 1238
OPTICAL Value Unit Standard
Light Transmission 85 % ASTM D 1003
Haze 1 % ASTM D 1003
Refractive Index 1.586 - ASTM D 542
ELECTRICAL Value Unit Standard
Volume Resistivity >1.E+17 Ohm-cm ASTM D 257
Dielectric Strength, in air, 3.2 mm 16.7 kV/mm ASTM D 149
Relative Permittivity, 50/60 Hz 3.01 - ASTM D 150
Relative Permittivity, 1 MHz 2.96 - ASTM D 150
Dissipation Factor, 50/60 Hz 0.0009 - ASTM D 150
Dissipation Factor, 1 MHz 0.01 - ASTM D 150
Arc Resistance, Tungsten {PLC} 7 PLC Code ASTM D 495
Hot Wire Ignition {PLC) 2 PLC Code UL 746A
High Voltage Arc Track Rate {PLC} 3 PLC Code UL 746A
High Ampere Arc Ign, surface {PLC} 3 PLC Code UL 746A
Comparative Tracking Index (UL) {PLC} 2 PLC Code UL 746A
FLAME CHARACTERISTICS Value Unit Standard
UL Recognized, 94V-2 Flame Class Rating (3) 1.47 mm UL 94
UL Recognized, 94V-0 Flame Class Rating (3) 2.99 mm UL 94
Oxygen Index (LOI) 35 % ASTM D 2863
Radiant Panel Listing YES - UL Tested
Source GMD, last updated:02/20/2002

Processing

THESE PROPERTY VALUES ARE NOT INTENDED FOR SPECIFICATION PURPOSES.
PLEASE CHECK WITH YOUR (LOCAL SALES OFFICE) FOR AVAILABILITY IN YOUR REGION
(1) Typical values only. Variations within normal tolerances are possible for various colors. All values are measured after at least 48 hours
storage at 23°C/50% relative humidity. All properties, except the melt volume and melt flow rates, are measured on injection molded
samples. All samples tested under ISO test standards are prepared according to ISO 294.
(2) Only typical data for selection purposes. Not to be used for part or tool design.
(3) This rating is not intended to reflect hazards presented by this or any other material under actual fire conditions.
(4) Internal measurements according to UL standards.



For more information please download the datasheet

Sabic Lexan fxe941a medium Viscosity, Flame Retardant Pc. Exceptional Surface. Illuminate Special Effects 0  Sabic Lexan fxe941a.pdf
