Sabic Lexan 910a preliminary Data. Low Viscosity Pc.

Sabic Lexan 910a preliminary Data. Low Viscosity Pc.
Features Gallery Product Description Request A Quote
Melt Flow Rate, 300°C/1.2 Kgf: 19.5
UL Recognized, 94V-2 Flame Class Rating (3): 1.47
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: 910A
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

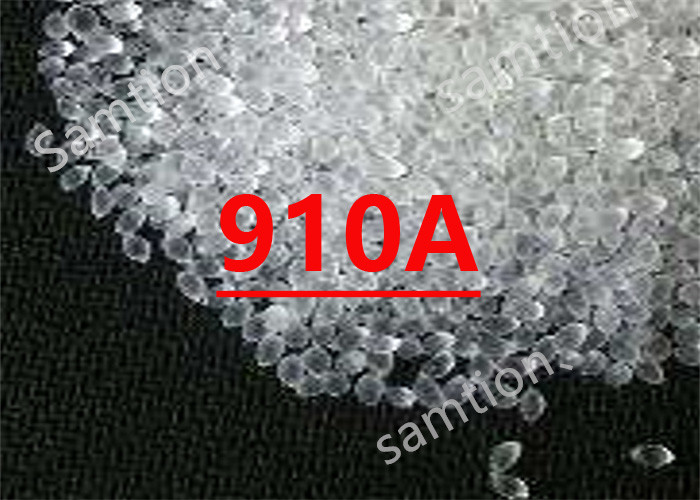

Sabic Lexan  910A resin is PRELIMINARY DATA. Low viscosity PC.


Tensile Stress, yld, Type I, 50 mm/min62MPaASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span96MPaASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span2240MPaASTM D 790
Izod Impact, notched, 23°C640J/mASTM D 256
HDT, 1.82 MPa, 6.4 mm, unannealed129°CASTM D 648
Relative Temp Index, Elec130°CUL 746B
Relative Temp Index, Mech w/impact120°CUL 746B
Relative Temp Index, Mech w/o impact130°CUL 746B
Specific Gravity1.21-ASTM D 792
Mold Shrinkage, flow, 3.2 mm0.6 - 0.8%SABIC Method
Melt Flow Rate, 300°C/1.2 kgf19.5g/10 minASTM D 1238
Arc Resistance, Tungsten {PLC}7PLC CodeASTM D 495
Hot Wire Ignition {PLC)2PLC CodeUL 746A
High Voltage Arc Track Rate {PLC}3PLC CodeUL 746A
High Ampere Arc Ign, surface {PLC}3PLC CodeUL 746A
Comparative Tracking Index (UL) {PLC}2PLC CodeUL 746A
UL Recognized, 94V-2 Flame Class Rating (3)1.47mmUL 94
UL Recognized, 94V-0 Flame Class Rating (3)2.99mmUL 94
Radiant Panel ListingYES-UL Tested
Source GMD, last updated:01/04/2000


Injection MoldingValueUnit
Drying Temperature120°C
Drying Time3 - 4hrs
Drying Time (Cumulative)10hrs
Maximum Moisture Content0.02%
Melt Temperature275 - 300°C
Nozzle Temperature270 - 295°C
Front - Zone 3 Temperature275 - 300°C
Middle - Zone 2 Temperature265 - 290°C
Rear - Zone 1 Temperature255 - 275°C
Mold Temperature70 - 95°C
Back Pressure0.3 - 0.7MPa
Screw Speed40 - 70rpm
Shot to Cylinder Size40 - 60%
Vent Depth0.025 - 0.076mm
Source GMD, last updated:01/04/2000



For more information please download the datasheet

Sabic Lexan 910a preliminary Data. Low Viscosity Pc. 0 Sabic Lexan 910a.pdf
