Sabic Lexan 3432UV 20% Glass Filled, Flame Retardant, UV Stabilised, Polycarbonate.

100KG
MOQ
*USD
Price
Sabic Lexan 3432UV 20% Glass Filled, Flame Retardant, UV Stabilised, Polycarbonate.
Features Gallery Product Description Request A Quote
Features
Specifications
Melt Flow Rate, 300°C/1.2 Kgf: 4
Basic Infomation
Place of Origin: ——
Brand Name: Sabic Lexan
Certification: COA/ICP Test/Rohs/MSDS
Model Number: 3432UV
Payment & Shipping Terms
Packaging Details: 25KG/BAG
Delivery Time: To be negotiated
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: To be negotiated
Product Description

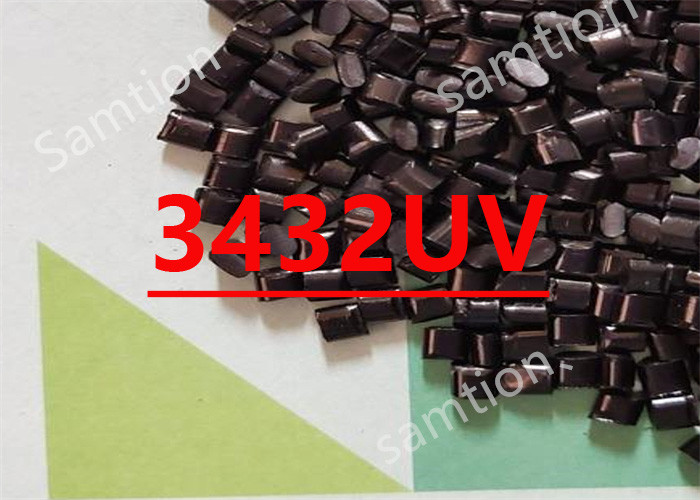

Sabic Lexan  3432UV resin is 20% glass filled, flame retardant, UV stabilised, polycarbonate.




Property

TYPICAL PROPERTIES (1)
MECHANICAL Value Unit Standard
Tensile Stress, yld, Type I, 50 mm/min 110 MPa ASTM D 638
Tensile Strain, brk, Type I, 50 mm/min 5 % ASTM D 638
Tensile Modulus, 50 mm/min 5900 MPa ASTM D 638
Flexural Stress, yld, 1.3 mm/min, 50 mm span 130 MPa ASTM D 790
Flexural Modulus, 1.3 mm/min, 50 mm span 5500 MPa ASTM D 790
IMPACT Value Unit Standard
Izod Impact, notched, 23°C 106 J/m ASTM D 256
THERMAL Value Unit Standard
HDT, 1.82 MPa, 3.2mm, unannealed 142 °C ASTM D 648
HDT, 1.82 MPa, 6.4 mm, unannealed 146 °C ASTM D 648
CTE, -40°C to 60°C, flow 4.86E-05 1/°C ASTM E 831
PHYSICAL Value Unit Standard
Specific Gravity 1.35 - ASTM D 792
Water Absorption, 24 hours 0.16 % ASTM D 570
Mold Shrinkage, flow, 3.2 mm 0.1 - 0.3 % SABIC Method
Melt Flow Rate, 300°C/1.2 kgf 4 g/10 min ASTM D 1238
Source GMD, last updated:06/18/1999

Processing

Parameter
Injection Molding Value Unit
Drying Temperature 120 °C
Drying Time 4 - 6 hrs
Drying Time (Cumulative) 48 hrs
Melt Temperature 315 - 335 °C
Mold Temperature 80 - 115 °C
Source GMD, last updated:06/18/1999








For more information please download the datasheet

Sabic Lexan 3432UV 20% Glass Filled, Flame Retardant, UV Stabilised, Polycarbonate. 0  Sabic Lexan 3432UV.pdf
